ZED X One Core

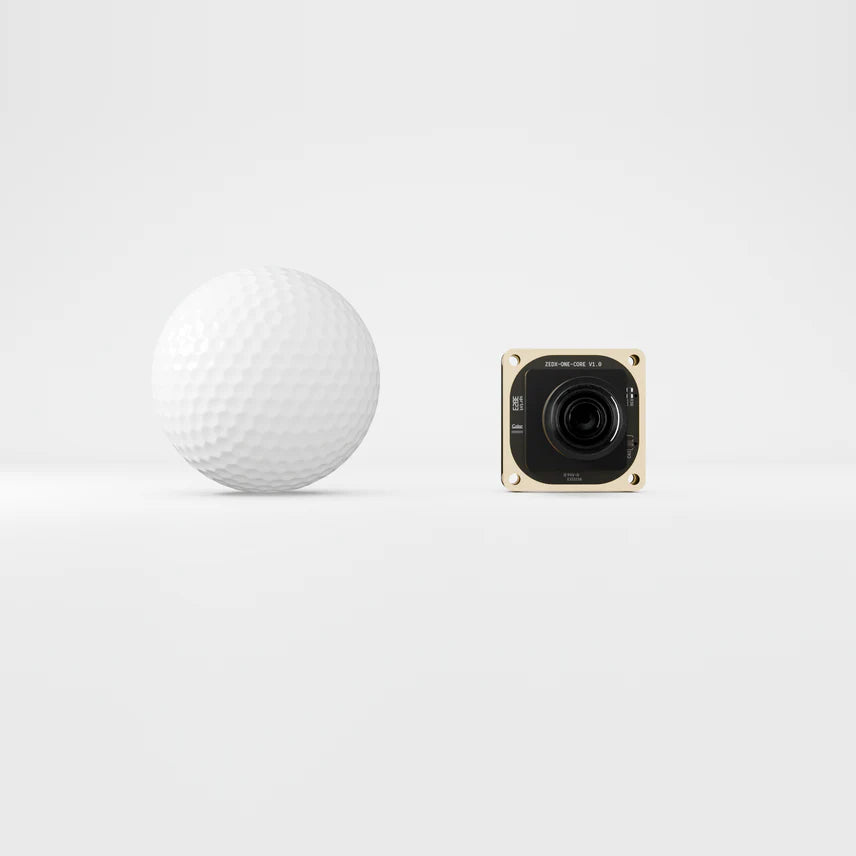

Its ultra-slim design integrates seamlessly into tight enclosures and highly integrated robotic systems, making it ideal for next-generation automation platforms.

It features a native Industrial MIPI I-PEX connector designed for extended coaxial cable lengths of up to 70cm, offering significantly greater routing flexibility than standard MIPI interfaces.

The camera is designed for exclusive use with the ZED Link MIPI capture card. This ecosystem interfaces directly with either the NVIDIA Jetson AGX Orin Developer Kit, or the NVIDIA Holoscan Sensor Bridge for the NVIDIA Jetson AGX Thor Developer Kit.

This setup enables low-latency, multi-camera acquisition, supporting up to four cameras from a single capture module. This modular solution facilitates the efficient deployment of advanced edge-AI pipelines while providing maximum scalability for complex perception tasks.

• 2.3MP Color Global Shutter sensor

• Resolution: 1920x1200 @60fps

• Field of view options:
  Fisheye 195° (H) x 115° (V) x 220° (D)
  Wide 110°(H) x 80°(V) x 120°(D)
  Narrow 80°(H) x 52°(V) x 91°(D)

• 16-bit IMU delivers low-noise, low-bias motion tracking with strong vibration resistance.
• Robotics-ready MIPI I-PEX interface delivers high-bandwidth, EMI-free, low-latency video streaming.
• Frame-level hardware sync with ≤15 μs precision for multi-camera setups.
• Full compatibility with NVIDIA Jetson AGX Orin and Holoscan Sensor Bridge for NVIDIA Jetson AGX Thor.
• Compatible with ZED SDK



* Please note: This camera is designed exclusively for use with the ZED Link MIPI capture card. Lens focusing and camera calibration (intrinsic and extrinsic for stereo configurations) are to be performed by the user to ensure optimal performance for their specific environment.
