Multi-Camera GMSL2 Capture for Full Surround Perception. Seamlessly integrate up to eight ZED X cameras into your edge AI platform.
The ZED Link Capture Card Quad delivers eight GMSL2 channels for multi-camera vision systems on NVIDIA Jetson Orin platforms.
Key Features
-
Four Fakra GMSL2 connectors for synchronized capture of up to 8 video streams.
-
Engineered for surround perception, obstacle detection, and 3D mapping.
-
Industrial-grade design with ultra-low latency performance.
- Compatible with NVIDIA® Jetson AGX Orin and Xavier AGX development kits.
- Perfect for building advanced 360° perception systems in robotics, autonomous machines, and smart analytics applications.
Product Features
- High performance capture card for Jetson.
- Supports hardware synchronization between capture cards at the shutter level as well as an external trigger/strobe.
- Requires external 12-19V power supply.
- View Cable Guide

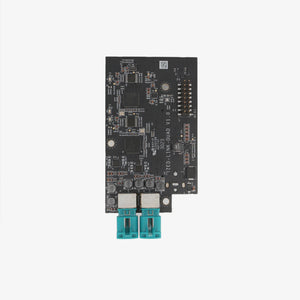

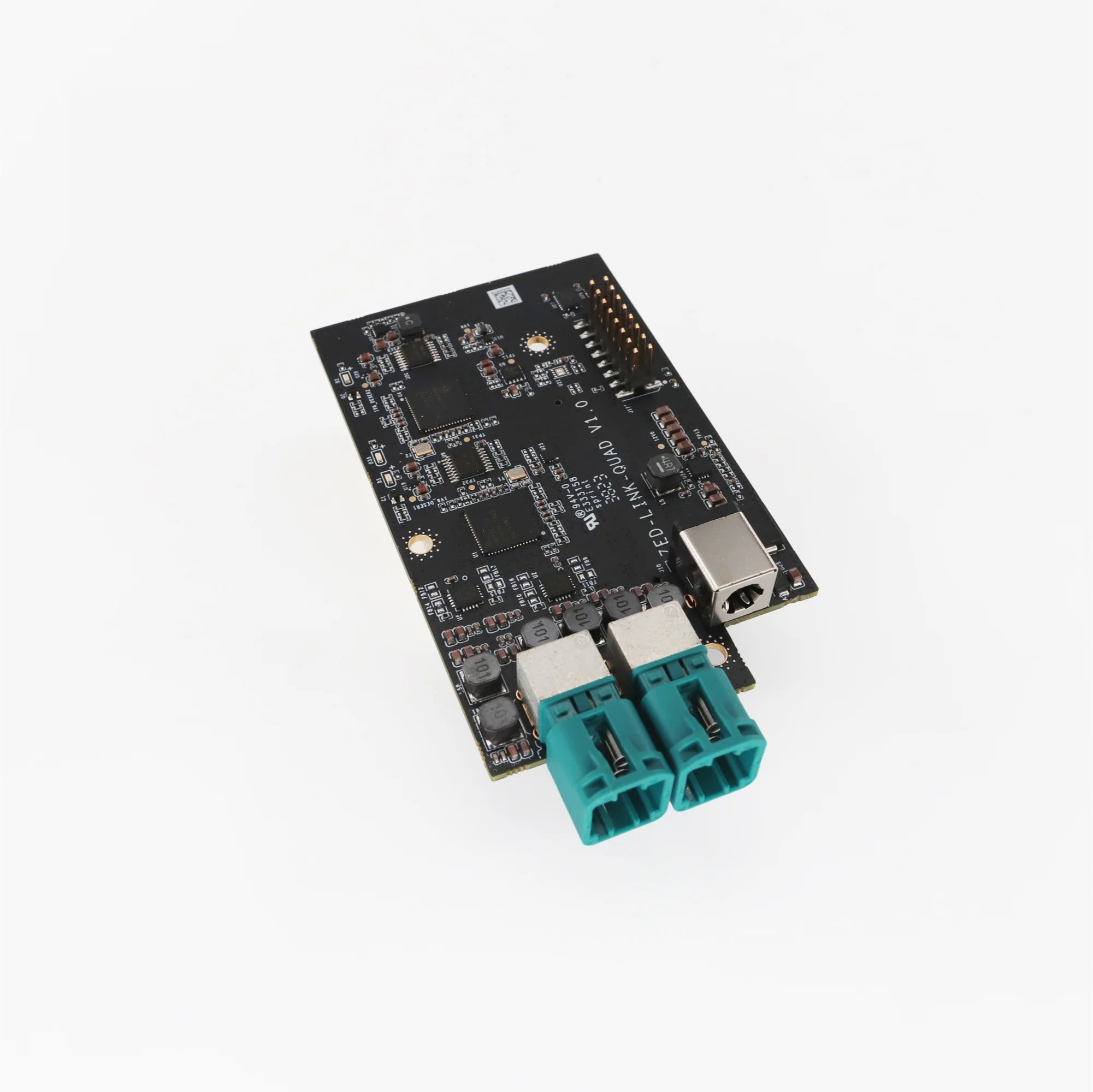

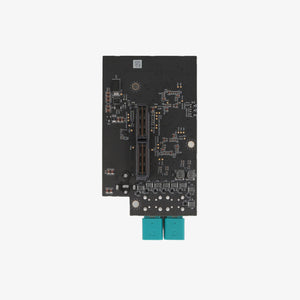

Quad Capture Card
-
Capture 8** x GMSL2 camera inputs in SD/HD/4K up to 4K@30.\
- Up to 40Gb/s total bandwidth.

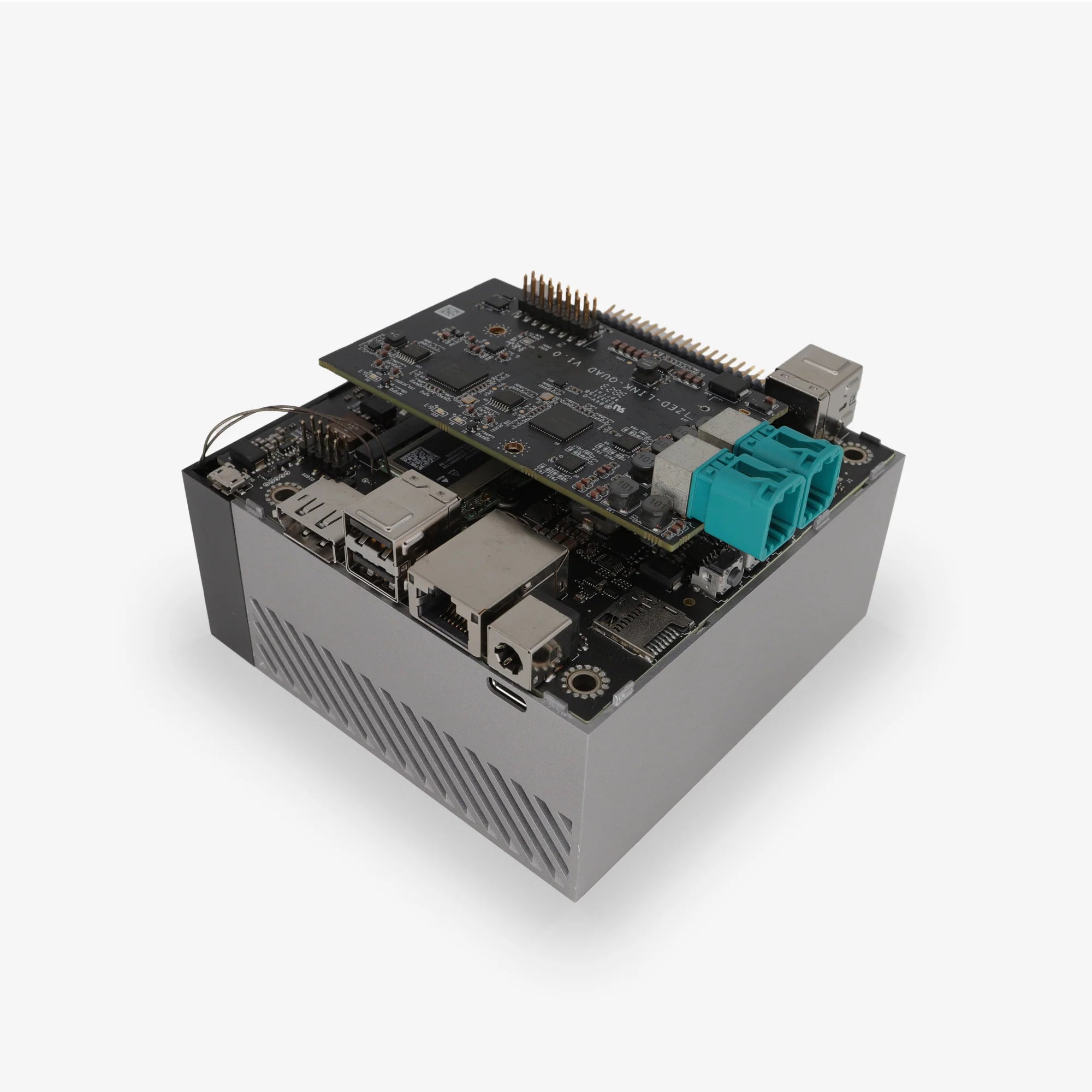

- Connects to the SAMTEC CSI port of Jetson Orin/Xavier AGX.

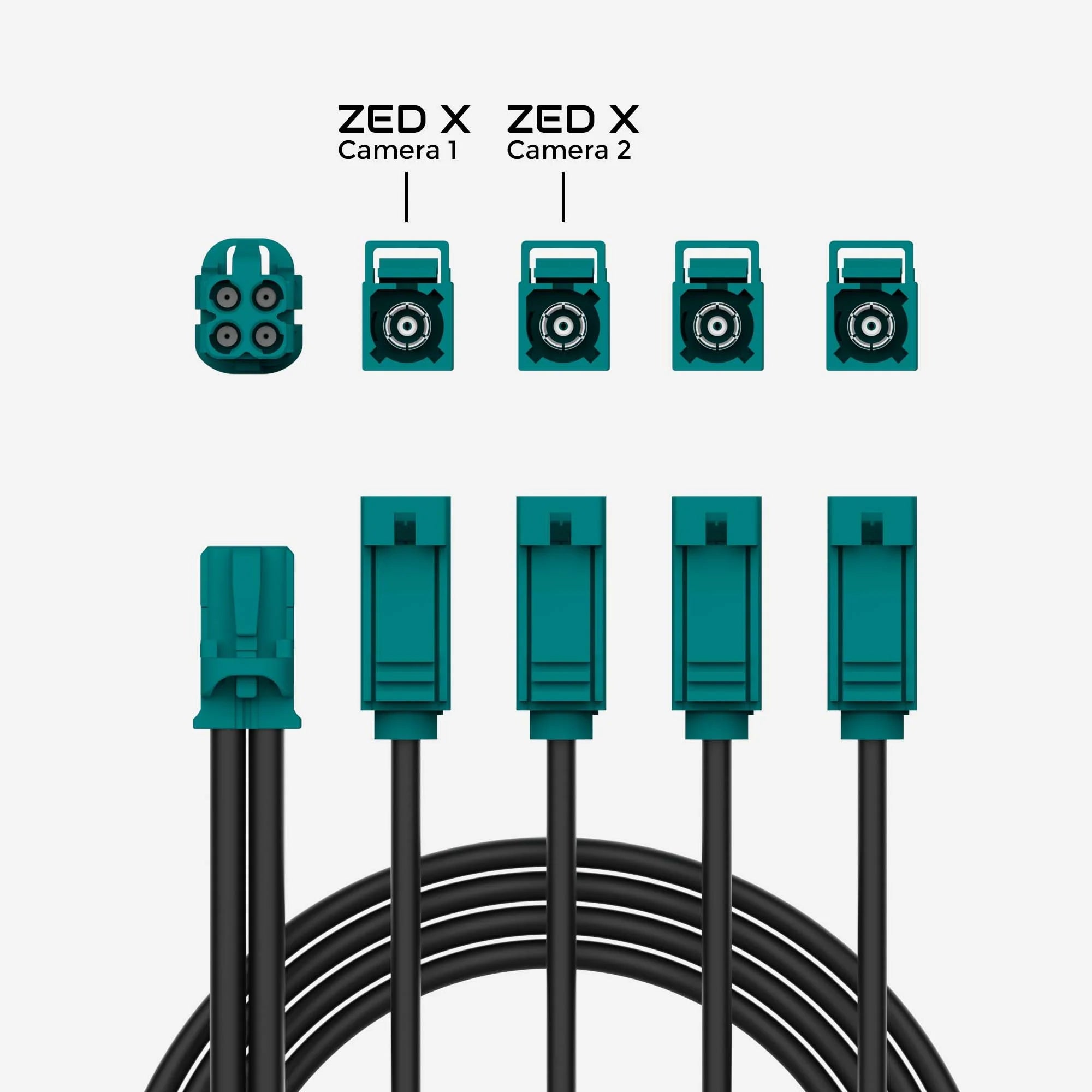

- Includes two 0.3m (0.98ft) 1-to-4 GMSL2 M-F cables.
** The ZED Link Quad is limited to only 4x ZED X One 4k inputs, 2 per GMSL port,
8x inputs are compatible with all other camera models.
Learn what makes this product unique and why it’s right for you.
Multi-Camera GMSL2 Capture for Full Surround Perception. Seamlessly integrate up to eight ZED X cameras into your edge AI platform.
The ZED Link Capture Card Quad delivers eight GMSL2 channels for multi-camera vision systems on NVIDIA Jetson Orin platforms.
Key Features
-
Four Fakra GMSL2 connectors for synchronized capture of up to 8 video streams.
-
Engineered for surround perception, obstacle detection, and 3D mapping.
-
Industrial-grade design with ultra-low latency performance.
- Compatible with NVIDIA® Jetson AGX Orin and Xavier AGX development kits.
- Perfect for building advanced 360° perception systems in robotics, autonomous machines, and smart analytics applications.
Product Features
- High performance capture card for Jetson.
- Supports hardware synchronization between capture cards at the shutter level as well as an external trigger/strobe.
- Requires external 12-19V power supply.
- View Cable Guide
Quad Capture Card
-
Capture 8** x GMSL2 camera inputs in SD/HD/4K up to 4K@30.\
- Up to 40Gb/s total bandwidth.
- Connects to the SAMTEC CSI port of Jetson Orin/Xavier AGX.
- Includes two 0.3m (0.98ft) 1-to-4 GMSL2 M-F cables.
** The ZED Link Quad is limited to only 4x ZED X One 4k inputs, 2 per GMSL port,
8x inputs are compatible with all other camera models.
