Single-Camera GMSL2 Capture for Jetson Orin Bring industrial-grade stereo vision to your edge AI projects with a compact, mono-channel interface.

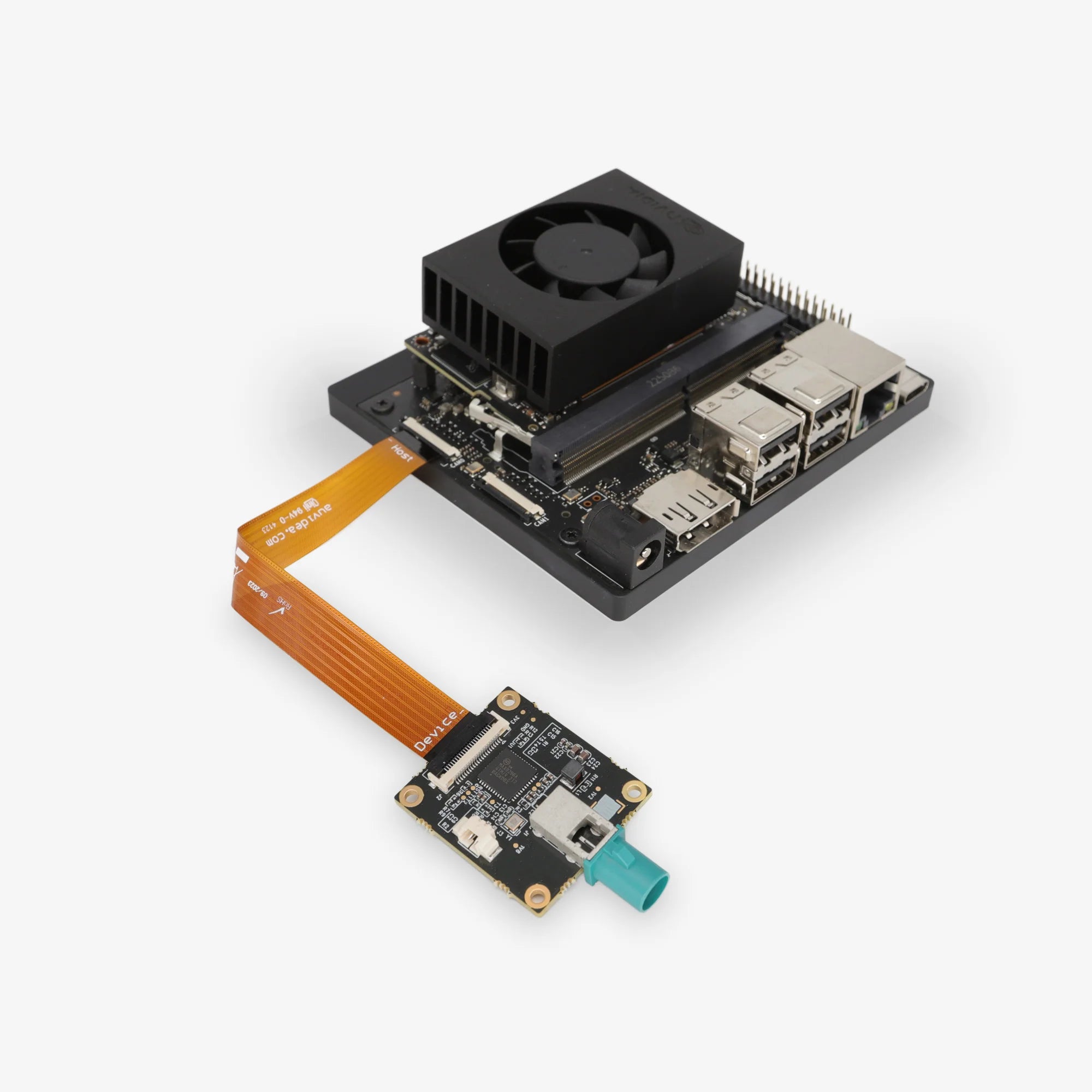

The ZED Link Mono Capture Card provides a dedicated GMSL2 connection for one ZED X or ZED X One camera on NVIDIA Jetson Orin and Xavier platforms.
Key Features
- Single high-speed GMSL2 input with Fakra connector
- Ultra-low latency video capture for robotics and machine vision
- Compatible with NVIDIA® Jetson Orin Nano and Xavier NX development kits and ZED SDK
- Compact form factor ideal for embedded integration
- Perfect for projects requiring a streamlined single-camera connection with industrial reliability.
Product Features
- High performance capture card for Jetson.
- Supports hardware synchronization between capture cards at the shutter level as well as an external trigger/strobe.
- Requires external 12-19V power supply.
- View Cable Guide

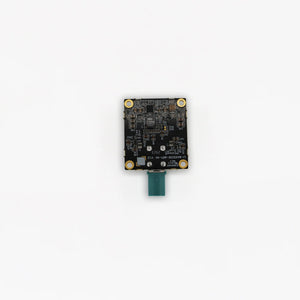

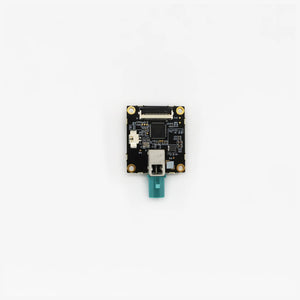

Mono Capture Card
- Capture 1x GMSL2 camera input in SD/HD/4K up to 4K@30.
- Up to 6Gb/s total bandwidth.
- Connects to the CSI port of the carrier board through a 22pin 0.5mm pitch connector.
- Includes JST to jack connector and CSI cable.
Learn what makes this product unique and why it’s right for you.
Single-Camera GMSL2 Capture for Jetson Orin Bring industrial-grade stereo vision to your edge AI projects with a compact, mono-channel interface.
The ZED Link Mono Capture Card provides a dedicated GMSL2 connection for one ZED X or ZED X One camera on NVIDIA Jetson Orin and Xavier platforms.
Key Features
- Single high-speed GMSL2 input with Fakra connector
- Ultra-low latency video capture for robotics and machine vision
- Compatible with NVIDIA® Jetson Orin Nano and Xavier NX development kits and ZED SDK
- Compact form factor ideal for embedded integration
- Perfect for projects requiring a streamlined single-camera connection with industrial reliability.
Product Features
- High performance capture card for Jetson.
- Supports hardware synchronization between capture cards at the shutter level as well as an external trigger/strobe.
- Requires external 12-19V power supply.
- View Cable Guide
Mono Capture Card
- Capture 1x GMSL2 camera input in SD/HD/4K up to 4K@30.
- Up to 6Gb/s total bandwidth.
- Connects to the CSI port of the carrier board through a 22pin 0.5mm pitch connector.
- Includes JST to jack connector and CSI cable.
Stereolabs
by
Stereolabs
ZED Link Capture Card Mono
- Regular price
- 7,623.15 ฿
- Sale price
- 7,623.15 ฿
