Multi-Camera GMSL2 Capture for Advanced Vision. Simultaneous video streams for up to four ZED X cameras for rich perception.
The ZED Link Capture Card Duo enables up to four concurrent GMSL2 camera inputs, empowering your Jetson Orin or Xavier system to process stereo or multi-view feeds.
Key Features
- Dual Fakra GMSL2 connectors for synchronized video capture.
- Real-time 3D perception and AI processing with the ZED SDK.
- Low-latency performance optimized for robotics and automation.
- Compatible with NVIDIA® Jetson Orin Nano, AGX Orin, Xavier NX, and Xavier AGX development kits.
- Ideal for applications requiring dual-camera setups, such as robot navigation, depth sensing, and surround perception.
Product Features
- High performance capture card for Jetson.
- Supports hardware synchronization between capture cards at the shutter level as well as an external trigger/strobe.
- Requires external 12-19V power supply.
- View Cable Guide

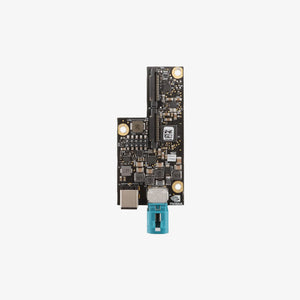

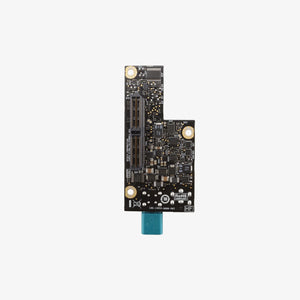

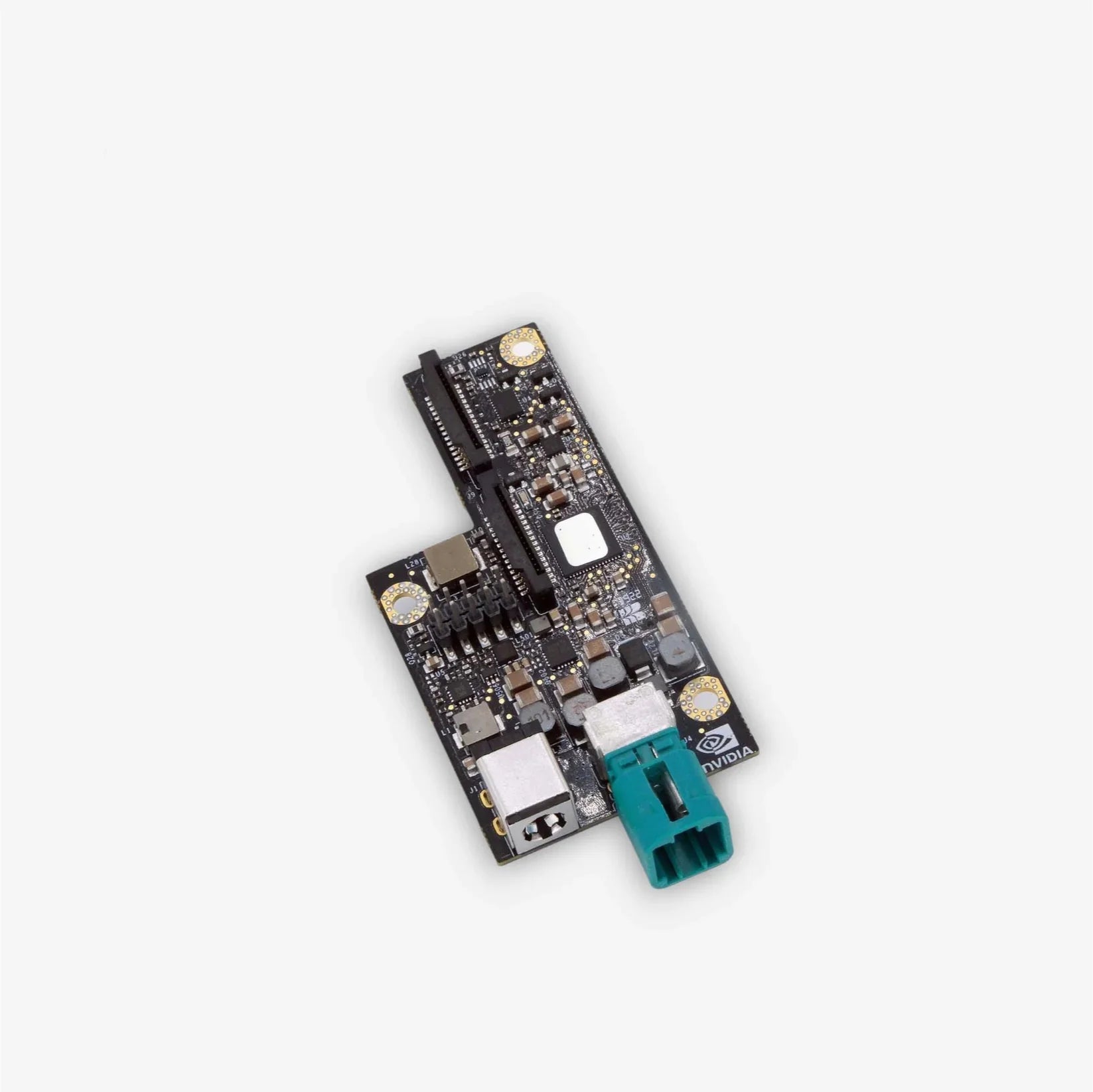

Duo Capture Card
- Capture 4* x GMSL2 camera inputs in SD/HD/4K up to 4K@30.
- Up to 10Gb/s total bandwidth.

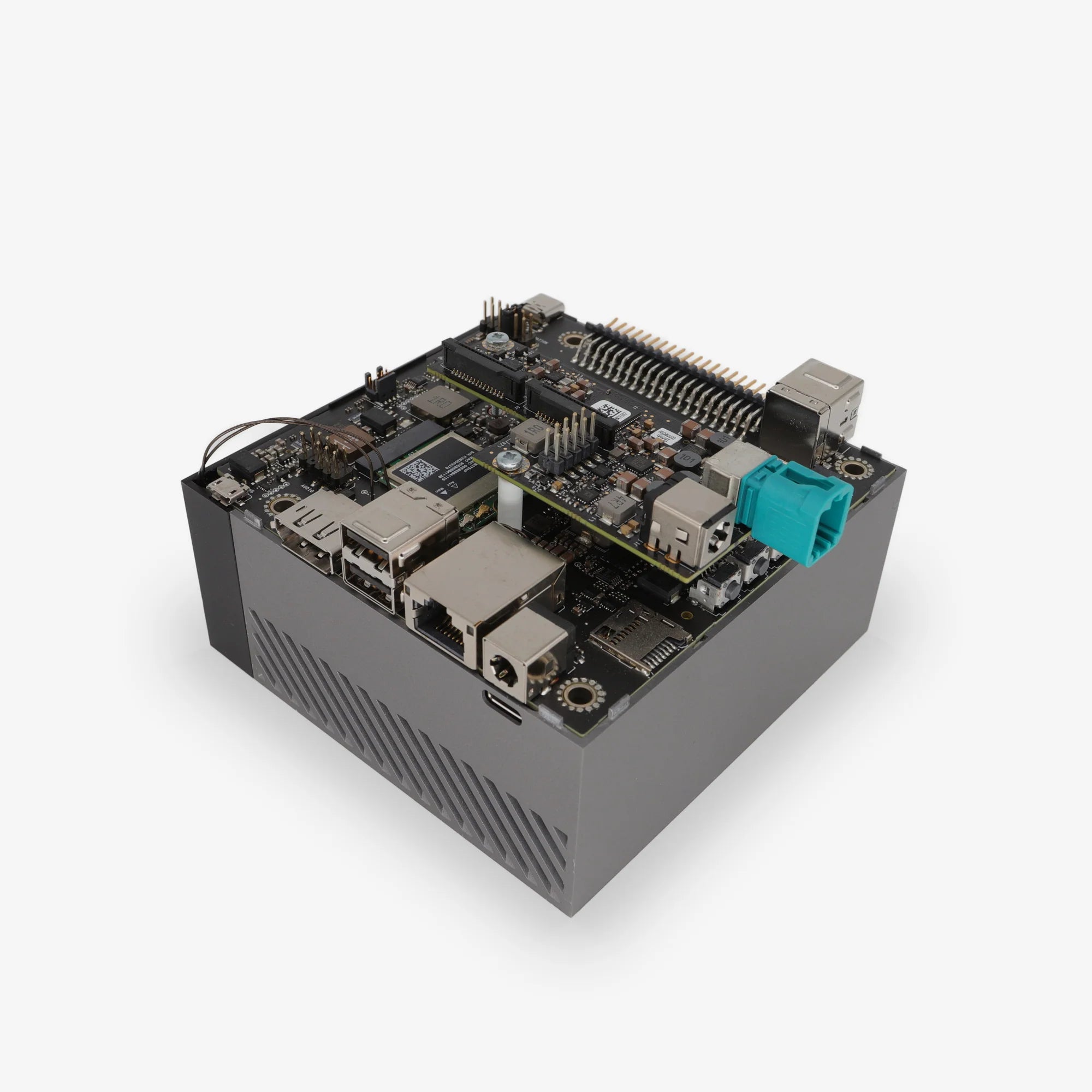

- Connects to the CSI port of the Orin/Xavier Developer Kit.
- Includes:

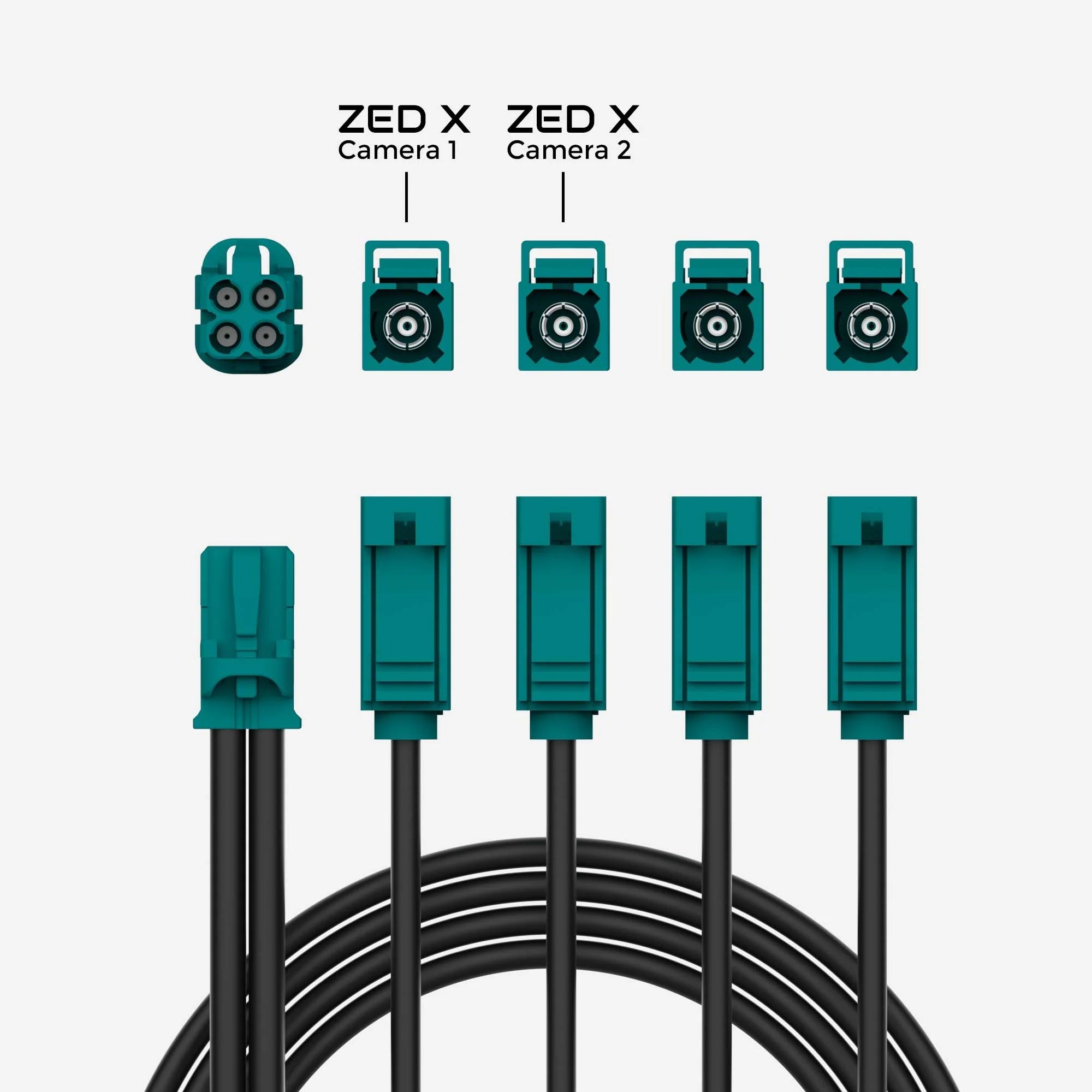

- 1x 0.3m (0.98ft) 1-to-4 GMSL2 cable.
- 3x M2.5 x 20mm bolts
- 3x 16mm Spacers
*The ZED Link Duo is limited to only 2x ZED X One 4k inputs,
4x inputs are compatible with all other camera models.
Learn what makes this product unique and why it’s right for you.
Multi-Camera GMSL2 Capture for Advanced Vision. Simultaneous video streams for up to four ZED X cameras for rich perception.
The ZED Link Capture Card Duo enables up to four concurrent GMSL2 camera inputs, empowering your Jetson Orin or Xavier system to process stereo or multi-view feeds.
Key Features
- Dual Fakra GMSL2 connectors for synchronized video capture.
- Real-time 3D perception and AI processing with the ZED SDK.
- Low-latency performance optimized for robotics and automation.
- Compatible with NVIDIA® Jetson Orin Nano, AGX Orin, Xavier NX, and Xavier AGX development kits.
- Ideal for applications requiring dual-camera setups, such as robot navigation, depth sensing, and surround perception.
Product Features
- High performance capture card for Jetson.
- Supports hardware synchronization between capture cards at the shutter level as well as an external trigger/strobe.
- Requires external 12-19V power supply.
- View Cable Guide
Duo Capture Card
- Capture 4* x GMSL2 camera inputs in SD/HD/4K up to 4K@30.
- Up to 10Gb/s total bandwidth.
- Connects to the CSI port of the Orin/Xavier Developer Kit.
- Includes:
- 1x 0.3m (0.98ft) 1-to-4 GMSL2 cable.
- 3x M2.5 x 20mm bolts
- 3x 16mm Spacers
*The ZED Link Duo is limited to only 2x ZED X One 4k inputs,
4x inputs are compatible with all other camera models.
Stereolabs
by
Stereolabs
ZED Link Capture Card Duo
- Regular price
- 20,817.15 ฿
- Sale price
- 20,817.15 ฿
- Regular price
-
Couldn't load pickup availability
Out of stock
