Compact AI computing for scalable robotics and vision systems.

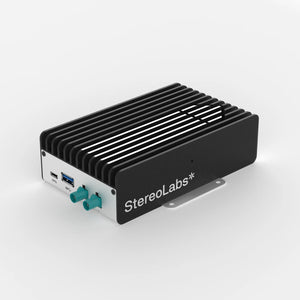

Built on NVIDIA Jetson Orin, the ZED Box Mini delivers high performance in a small form factor. Its flexible I/O and GMSL2 support make it perfect for large-scale deployments.

General Specifications

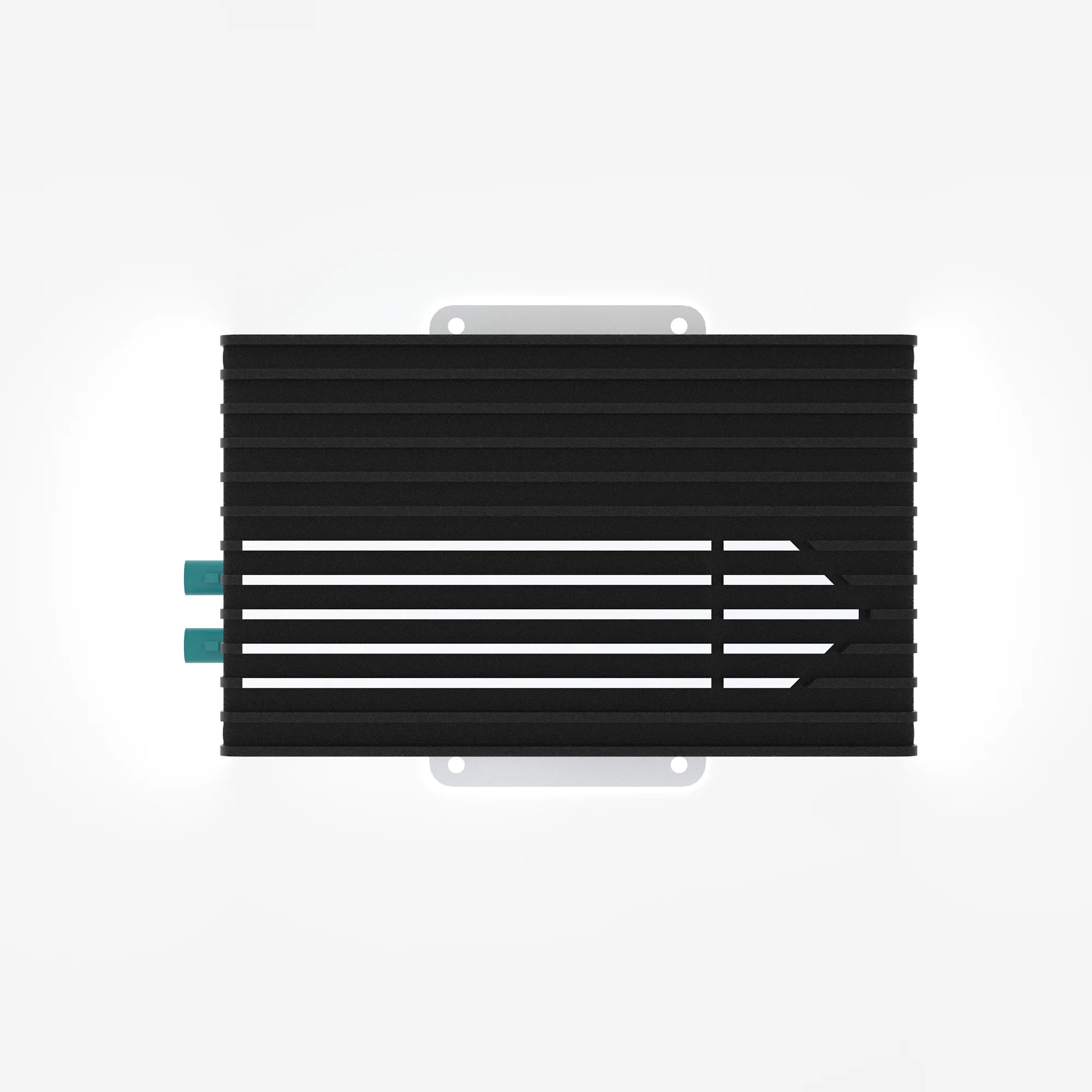

• • Aluminum case passively cooled
  • Dimensions: 152.8 × 103.8 × 41.5 mm (L×W×H) / 6.02 × 4.09 × 1.63 in
  • Mounting options: 92 × 45mm mounting holes
  • Weight: 600 g (1.32lb)
  • Power: DC-IN 10.5V to 13.5V — 60W max
  • Screwable Terminal block connector TBP01P1W-508-02GR
  • SSD 256GB mounted on M.2 Key-M 2242 socket

AI Module

• NVIDIA® Jetson™ Orin Nano 4GB module
  Ai Performance: 20 TOPS

• NVIDIA® Jetson™ Orin Nano 8GB module
  Ai Performance: 40 TOPS

• NVIDIA® Jetson™ Orin NX 8GB module
  Ai Performance: 70 TOPS

• NVIDIA® Jetson™ Orin NX 16GB module
  Ai Performance: 100 TOPS


Supplied with Jetpack version JP6.2 L4T36.4. 'Super' mode unavailable at this time.

WiFi Option

• WiFi 6 connectivity with 1x Intel AX210 Module mounted on M.2 Key-E 2230 socket and with 2x 2.4/5GHz WiFi antennas


I/O interfaces

• 2x GMSL2 FAKRA-Z connectors*

• 1x USB3.0 Type-A
• 1x 10/100/1000 Base-T Ethernet RJ45

• 1x HDMI 1.4
• 1x Micro USB2.0 Type-B for system flashing & OTG
• 1x GMSL2 camera synchronization trigger input
• 1x GMSL2 cameras synchronization trigger output

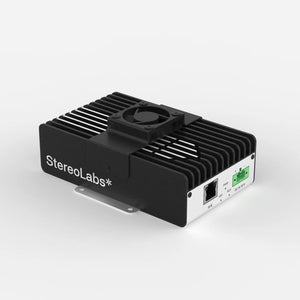

• 1x 12V fan entry

• Miscellaneousconnector includes: 1x CAN, 1x UART, 2x GPIOs, 1x 5V, 1x 3.3V, 2x GND

*The ZED Box Mini is limited to only 1x ZED X One 4k input,
2x inputs are compatible with all other camera models.

**The ZED Box Mini Orin Nano 4GB/8GB does not support video streaming (encoding) yet.
